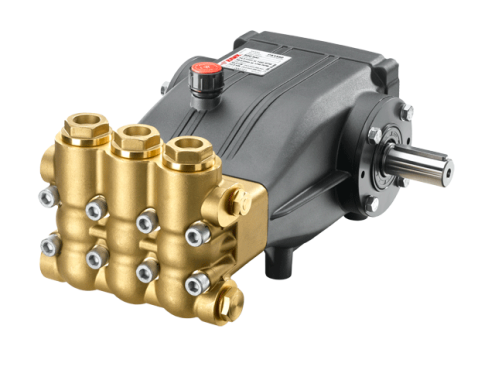

PXI Heavy Duty Series
The pumps in the PXI -EB can operate at a maximum pressure of 500 bar and a water temperature of up to 65° (150 F). This model is fitted with an ECOBRASS head, which makes the pump sturdier than the PXI 500 base version. This is why, despite its compact dimensions, it can be used on industrial washing systems, in a which more intense pace of work is required.
TECHNICAL CHARACTERISTICS
| Weight | Kg | 20,5 |
| Oil capacity | lt. | 1,2 |
| Inlet | G | 1/2'' |
| Outlet | G | 3/8'' |
TECHNICAL CHARACTERISTICS
| Weight | Kg | 20,5 |
| Oil capacity | lt. | 1,2 |
| Inlet | G | 1/2'' |
| Outlet | G | 3/8'' |
Find out about all the models in the series PXI Heavy Duty.
|
Part. No.
CODE |
Part. No.
CODE |
FLOW RATE | MAX PRESSURE | RPM | MAX POWER | TEMPERATURE | POWER TAKE-OFF | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | HP | KW | |||||||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | BAR | PSI | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | °C | °F | |||
| PX1550EBIL | 1.904-964.0 | 15 | 18 | 4 | 4.8 | 500 | 7250 | 1450 | 1740 | 19.4 | 23.3 | 14.3 | 17.2 | 65 | 150 |
|
| PX1550EBIR | 1.904-963.0 | 15 | 18 | 4 | 4.8 | 500 | 7250 | 19.4 | 23.3 | 14.3 | 17.2 | 65 | 150 |
|
||
| PX1750EBIL | 1.905-251.0 | 17 | 20 | 4.4 | 5.3 | 500 | 7250 | 21.4 | 25.7 | 15.8 | 19 | 65 | 150 |
|
||
| PX1750EBIR | 1.905-252.0 | 17 | 20 | 4.4 | 5.3 | 500 | 7250 | 21.4 | 25.7 | 15.8 | 19 | 65 | 150 |
|
||
| PX2150EBIL | 1.904-966.0 | 21.5 | 26 | 5.7 | 6.8 | 500 | 7250 | 27.6 | 33.1 | 20.3 | 24.4 | 65 | 150 |
|
||
| PX2150EBIR | 1.904-965.0 | 21.5 | 26 | 5.7 | 6.8 | 500 | 7250 | 27.6 | 33.1 | 20.3 | 24.4 | 65 | 150 |
|
||
Discover the related ACCESSORIES
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Double flange electric motor
Double flange electric motors
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-432.0 | IEC160L | 96.0 | 20.0 | 15.0 | 1450 | 400/690V | XLTI, XLTI High Temperature, PXI 350, XXT, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty |
| 1.099-433.0 | IEC160L | 100 | 25.0 | 18.5 | 1450 | 400/690V | XLTI, PXI 350, XXT, PXI 500, XXT High Temperature, PXI Heavy Duty |
| 1.099-450.0 | IEC160L | 110 | 30 | 22 | 1450 | 400/690V | PXI 350, XXT, PXI 500, PXI Heavy Duty |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Flanges
Flanges
for electric motors
| CODE | MOTOR CONTRUCTION SHAPE | FOR PUMP SERIES |
|---|---|---|
| 1.099-531.0 | H132 B14 | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, NMT - Car Wash Heavy Duty, NMT Chemical, XLTI Chemical, XLTI Stainless Steel Chemical, NMT Stainless Steel Chemical, PXI Heavy Duty |
| 1.099-532.0 | H160 B5 | XLTI, XLTI High Temperature, PXI 350, XXT, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Flexible coupling
Flexible couplings for electic motors
| CODE | MOTOR CONTRUCTION SHAPE | MOTOR P.T.O. Ø | PUMP P.T.O. Ø | FOR PUMP SERIES |
|---|---|---|---|---|
| 1.099-545.0 | H132 | 38 mm | 24 mm | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, NMT - Car Wash Heavy Duty, NMT Chemical, XLTI Chemical, XLTI Stainless Steel Chemical, NMT Stainless Steel Chemical, PXI Heavy Duty |
| 1.905-890.0 | H160 | 42 mm | 24 mm | XLTI, XLTI High Temperature, PXI 350, XXT, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Hydraulic flanges and couplings kit
Flanges and couplings kit for hydraulic motors
| CODE | MOTOR CONTRUCTION SHAPE | MOTOR P.T.O. Ø | PUMP P.T.O. Ø | FOR PUMP SERIES |
|---|---|---|---|---|
| 1.905-732.0 | SAE J744 B | 7/8'' | 24 | XLTI, XLTI High Temperature, PXI 350, XXT, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Gearboxes
Gear reduction boxes for petrol engines
| CODE | MOTOR SHAFT DIAMETER | MOTOR FLANGE | INLET SPEED | OUTLET SPEED | MAX POWER | RATIO | FOR PUMP SERIES |
|---|---|---|---|---|---|---|---|
| Ø | TYPE | RPM | RPM | KW | N1 / N2 | ||
| 1.904-905.0 | 1" | SAE J609b | 3100 | 1425 | 17.7 | 2.176 | XLTI, PXI 350, XXT, NLTI, PXI 500, PXI Heavy Duty |
| 1.904-904.0 | 1"1/8 | SAE J609b | 3100 | 1425 | 17.7 | 2.176 | XLTI, PXI 350, XXT, NLTI, PXI 500, PXI Heavy Duty |
| 1.904-903.0 | 1"1/8 | SAE J609b | 3100 | 1425 | 23 | 2.176 | XLTI, PXI 350, XXT, PXI 500, PXI Heavy Duty |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Ordinary Maintenance Tool Kit
Tool kit for ordinary maintenance
| CODE | FOR PUMP SERIES |
|---|---|
| 1.099-665.0 | XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty, MPX Heavy Duty |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Extraordinary maintenance Kit
| CODE | FOR PUMP SERIES |
|---|---|
| 1.905-659.0 | XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty, MPX Heavy Duty |
