Misting

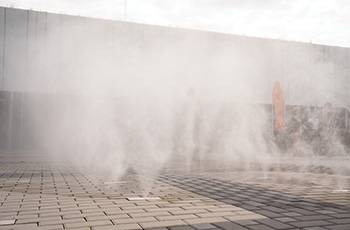

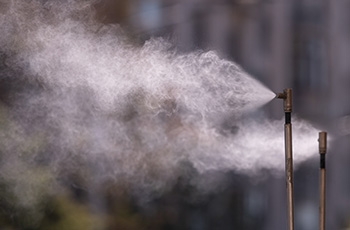

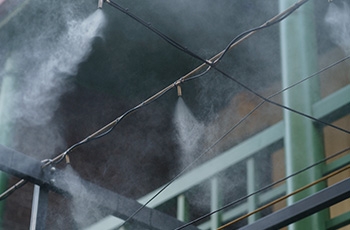

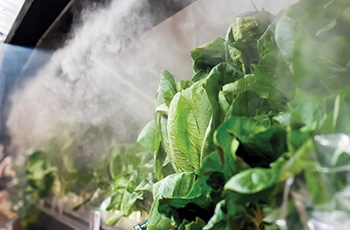

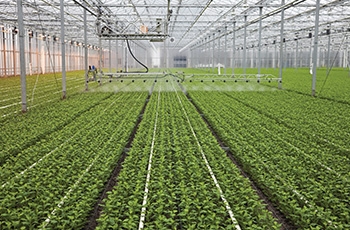

The pumps for misting water are products widely used in various sectors, including agriculture, industry, catering, and hospitality, to reduce the temperature of the surrounding environment and create more comfortable conditions.
Within this section, you will find a wide assortment of pumps for misting systems. Models with a pressure range from a minimum of 100 Bar to a maximum of 280. Each of the products offered is designed and manufactured according to the company's very high-quality standards.
Pumps for Misting
Accessories for Misting
Hollow shaft electric motor
Hollow shaft electric motors
Double flange electric motor
Double flange electric motors
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-432.0 | IEC160L | 96.0 | 20.0 | 15.0 | 1450 | 400/690V | XLTI, XLTI High Temperature, PXI 350, XXT, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty |
| 1.099-433.0 | IEC160L | 100 | 25.0 | 18.5 | 1450 | 400/690V | XLTI, PXI 350, XXT, PXI 500, XXT High Temperature, PXI Heavy Duty |
| 1.099-450.0 | IEC160L | 110 | 30 | 22 | 1450 | 400/690V | PXI 350, XXT, PXI 500, PXI Heavy Duty |
| 1.099-451.0 | IEC160L | 110 | 30 | 22 | 1450 | 400/690V | MXT, MXT High Temperature, MPX 350, MPX 500, MXT Chemical, MPX Heavy Duty, MXT Stainless Steel Chemical |
| 1.099-452.0 | IEC180L | 185 | 40 | 30 | 1450 | 400/690V | MXT, MXT High Temperature, MPX 350, MPX 500, MXT Chemical, MPX Heavy Duty, MXT Stainless Steel Chemical |
B3/B14 Electric motor version
B3/B14 Electric motor version
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-430.0 | IEC80 | 12.0 | 0.75 | 0.55 | 1450 | 230V | FOG |
| 1.099-437.0 | IEC80 | 12.0 | 1.0 | 0.75 | 1450 | 230V | FOG |
| 1.099-438.0 | IEC90S | 16.0 | 1.5 | 1.1 | 1450 | 230V | FOG |
| 1.099-422.0 | IEC90L | 16.0 | 2.0 | 1.5 | 1450 | 230V | FOG |
| 1.099-413.0 | IEC100 | 21.0 | 4.0 | 3.0 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, NHDP 120-C, NHDP 150-C, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
Flanges
Flanges
for electric motors
| CODE | MOTOR CONTRUCTION SHAPE | FOR PUMP SERIES |
|---|---|---|
| 1.099-528.0 | H90 B14 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-529.0 | H100/112 B14 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-530.0 | H100/112 B14 | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, NLTI, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical |
| 1.099-531.0 | H132 B14 | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, NMT - Car Wash Heavy Duty, NMT Chemical, XLTI Chemical, XLTI Stainless Steel Chemical, NMT Stainless Steel Chemical, PXI Heavy Duty |
| 1.099-532.0 | H160 B5 | XLTI, XLTI High Temperature, PXI 350, XXT, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty |
Flexible coupling
Flexible couplings for electic motors
VBT
Head-mounted unloader valve with by-pass
Max 25 lpm & 275 bar
| CODE | FLOW RATE | MAX PRESSURE | INLET | OUTLET | FOR PUMP SERIES | ||
|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | BAR | PSI | ||||
| 1.099-494.0 | 25 | 6.6 | 100 | 1450 | G 1/2 F | G 3/8 M | FOG, FOG NEMA |
| 1.099-485.0 | 25 | 6.6 | 210 | 3045 | G 1/2 F | G 3/8 M | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA |
Pulsation dumpener
| CODE | FOR PUMP SERIES |
|---|---|
| 1.904-254.0 | NMT, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NLTI, NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NMT - Car Wash Heavy Duty, NHDP 200-NEMA, NMT Chemical, NHDP Chemical, NHDP Stainless Steel Chemical, Complete Electric Motopumps Units NMT |
| 1.904-213.0 | XLTI, XLTI High Temperature, NLTI, XLTI Chemical, XLTI Stainless Steel Chemical |
Ordinary Maintenance Tool Kit
Tool kit for ordinary maintenance
| CODE | FOR PUMP SERIES |
|---|---|
| 9.853-525.0 | FOG, FOG NEMA |
| 1.904-744.0 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA, NMT Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-665.0 | XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty, MPX Heavy Duty |
| 1.099-669.0 | MXT, MXT High Temperature, MPX 350, MPX 500, MXT Chemical, MXT Stainless Steel Chemical |
| 1.905-635.0 | GXT, GXT High temperature, GPX, TXT, TPX |
| 1.904-204.0 | HFR, HHP 500 - 1000 rpm, HHP 500 - 1450 rpm |
Extraordinary maintenance Kit
| CODE | FOR PUMP SERIES |
|---|---|
| 1.905-591.0 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.905-659.0 | XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty, MPX Heavy Duty |
| 1.904-418.0 | MXT, MXT High Temperature, MPX 350, MPX 500, MXT Chemical, MXT Stainless Steel Chemical |
| 1.905-636.0 | GXT, GXT High temperature, GPX, GXX, TXT, TPX, TXX |
