Industrial Cleaning

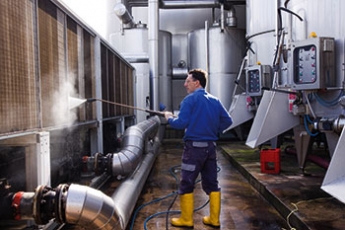

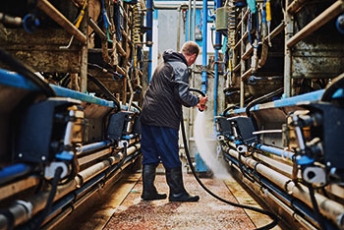

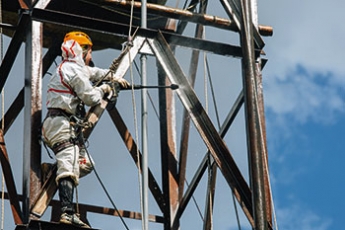

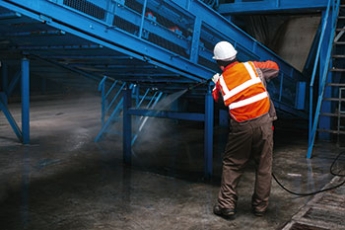

When high pressure exceeds the threshold of 350 BAR, we’re looking not at a regular cleaning activity, but at industrial washing, where numerous applications are possible. Consider cleaning large surfaces to remove covering agents such as varnishes, chemical stains or rust that has formed on steel. An extra-high-pressure jet can be used to effectively remove these elements quickly without leaving residue that can be damaging to the area below or the environment.
Ultra high pressure is also used for other fields of application, such as hydrodemolition, for the removal of parts of damaged concrete without damaging the steel structure inside; decontamination, to remove harmful substances from a surface, or for working with materials such as natural stone, bricks or metals.
Hawk: supply of ultra high pressure pumps for industrial cleaning
Thanks also to the help and experience of partners in our group already present in these sectors of application, we have been able to develop pumps with high levels of pressure and quality standards that exceed those required for our traditional products.

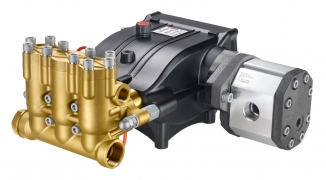

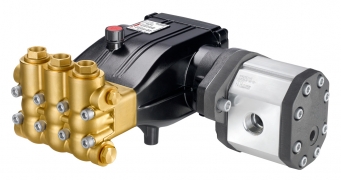

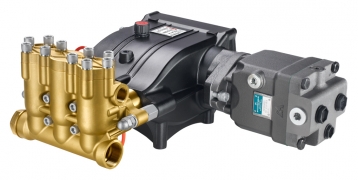

Pumps for Industrial Cleaning
Accessories for Industrial Cleaning
Double flange electric motor
Double flange electric motors
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-432.0 | IEC160L | 96.0 | 20.0 | 15.0 | 1450 | 400/690V | XLTI, XLTI High Temperature, PXI 350, XXT, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty |
| 1.099-433.0 | IEC160L | 100 | 25.0 | 18.5 | 1450 | 400/690V | XLTI, PXI 350, XXT, PXI 500, XXT High Temperature, PXI Heavy Duty |
| 1.099-450.0 | IEC160L | 110 | 30 | 22 | 1450 | 400/690V | PXI 350, XXT, PXI 500, PXI Heavy Duty |
| 1.099-451.0 | IEC160L | 110 | 30 | 22 | 1450 | 400/690V | MXT, MXT High Temperature, MPX 350, MPX 500, MXT Chemical, MPX Heavy Duty, MXT Stainless Steel Chemical |
| 1.099-452.0 | IEC180L | 185 | 40 | 30 | 1450 | 400/690V | MXT, MXT High Temperature, MPX 350, MPX 500, MXT Chemical, MPX Heavy Duty, MXT Stainless Steel Chemical |
Flanges
Flanges
for electric motors
| CODE | MOTOR CONTRUCTION SHAPE | FOR PUMP SERIES |
|---|---|---|
| 1.099-531.0 | H132 B14 | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, NMT - Car Wash Heavy Duty, NMT Chemical, XLTI Chemical, XLTI Stainless Steel Chemical, NMT Stainless Steel Chemical, PXI Heavy Duty |
| 1.099-532.0 | H160 B5 | XLTI, XLTI High Temperature, PXI 350, XXT, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty |
Flexible coupling
Flexible couplings for electic motors
Gearboxes
Gear reduction boxes for petrol engines
| CODE | MOTOR SHAFT DIAMETER | MOTOR FLANGE | INLET SPEED | OUTLET SPEED | MAX POWER | RATIO | FOR PUMP SERIES |
|---|---|---|---|---|---|---|---|
| Ø | TYPE | RPM | RPM | KW | N1 / N2 | ||
| 1.904-905.0 | 1" | SAE J609b | 3100 | 1425 | 17.7 | 2.176 | XLTI, PXI 350, XXT, NLTI, PXI 500, PXI Heavy Duty |
| 1.904-904.0 | 1"1/8 | SAE J609b | 3100 | 1425 | 17.7 | 2.176 | XLTI, PXI 350, XXT, NLTI, PXI 500, PXI Heavy Duty |
| 1.904-903.0 | 1"1/8 | SAE J609b | 3100 | 1425 | 23 | 2.176 | XLTI, PXI 350, XXT, PXI 500, PXI Heavy Duty |
Pressure Gauge
Pressure gauge
| CODE | COUPLING | SCALE | INLET | |
|---|---|---|---|---|
| BAR | PSI | |||
| 1.099-556.0 | Radial / Radiale | 250 | 3625 | G 1/4 M |
| 1.099-553.0 | Radial / Radiale | 315 | 4500 | G 1/4 M |
| 1.099-554.0 | Radial / Radiale | 400 | 5800 | G 1/4 M |
| 1.099-551.0 | Radial / Radiale | 600 | 8700 | G 1/4 M |
| 1.099-552.0 | Radial / Radiale | 1000 | 14500 | G 1/4 M |
| 1.905-848.0 | Radial / Radiale | 1600 | 23206 | G 1/2 M |
Ordinary Maintenance Tool Kit
Tool kit for ordinary maintenance
| CODE | FOR PUMP SERIES |
|---|---|
| 1.099-665.0 | XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty, MPX Heavy Duty |
| 1.099-669.0 | MXT, MXT High Temperature, MPX 350, MPX 500, MXT Chemical, MXT Stainless Steel Chemical |
| 1.905-635.0 | GXT, GXT High temperature, GPX, TXT, TPX |
| 1.904-204.0 | HFR, HHP 500 - 1000 rpm, HHP 500 - 1450 rpm |
| 1.905-138.0 | GXX, TXX |
Extraordinary maintenance Kit
| CODE | FOR PUMP SERIES |
|---|---|
| 1.905-659.0 | XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty, MPX Heavy Duty |
| 1.904-418.0 | MXT, MXT High Temperature, MPX 350, MPX 500, MXT Chemical, MXT Stainless Steel Chemical |
| 1.905-636.0 | GXT, GXT High temperature, GPX, GXX, TXT, TPX, TXX |
Accessories GXX-TXX
| CODE | NOTES | FOR PUMP SERIES |
|---|---|---|
| 1.905-239.0 | Pressure gauge connection G1/2 - 2000 bar / Kit raccordo manometro G1/2 - 2000 bar | GXX, TXX |
| 1.905-237.0 | Plug kit G 1/2 / Kit tappo G 1/2 | GXX, TXX |
| 1.905-236.0 | Double nipple M24x1,5-M24x1,5 / Raccordo doppio M24x1,5-M24x1,5 | GXX, TXX |
| 1.905-238.0 | Screw plug kit M24x1,5 DZ / Kit tappo M24x1,5 DZ | GXX, TXX |
