Vehicle Wash
Vehicle washing is one of the most popular uses of our high-pressure pumps, starting from the most traditional forms, when washing was done by hand with the aid of a simple pressure washer. This system remains common today in many places.

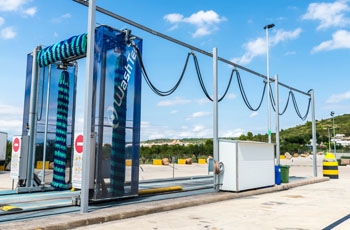

However, when we talk about a carwash today, we generally think of the classic multiple-bay, self-service types, or more often the automatic systems with brushes: both these solutions require fairly limited intervention on the part of an operator, or can be managed independently by users of the services.
These ideas, however, allow the system to operate up to 24 hours a day, and with washing programmes that differ widely from one another, thus requiring a greater effort from the washing equipment.
We are aware of these requirements, and we’ve studied solutions designed to allow our pumps to operate for longer, with less frequent maintenance, as well as the option for the same pump to function properly at different temperatures, using more or less aggressive detergents, or even demineralised or osmotised water.
Hawk: wide choice of high pressure pumps for car wash systems
We have solved these issues primarily by selecting from our range pumps that are oversized for this type of application, and by trying to select new materials and configurations so we are ready to meet each one of these particular requirements.
Pumps for Vehicle Wash
Accessories for Vehicle Wash
Hollow shaft electric motor
Hollow shaft electric motors
Double flange electric motor
Double flange electric motors
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-432.0 | IEC160L | 96.0 | 20.0 | 15.0 | 1450 | 400/690V | XLTI, XLTI High Temperature, PXI 350, XXT, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty |
| 1.099-433.0 | IEC160L | 100 | 25.0 | 18.5 | 1450 | 400/690V | XLTI, PXI 350, XXT, PXI 500, XXT High Temperature, PXI Heavy Duty |
| 1.099-450.0 | IEC160L | 110 | 30 | 22 | 1450 | 400/690V | PXI 350, XXT, PXI 500, PXI Heavy Duty |
| 1.099-451.0 | IEC160L | 110 | 30 | 22 | 1450 | 400/690V | MXT, MXT High Temperature, MPX 350, MPX 500, MXT Chemical, MPX Heavy Duty, MXT Stainless Steel Chemical |
| 1.099-452.0 | IEC180L | 185 | 40 | 30 | 1450 | 400/690V | MXT, MXT High Temperature, MPX 350, MPX 500, MXT Chemical, MPX Heavy Duty, MXT Stainless Steel Chemical |
B3/B14 Electric motor version
B3/B14 Electric motor version
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-413.0 | IEC100 | 21.0 | 4.0 | 3.0 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, NHDP 120-C, NHDP 150-C, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-414.0 | IEC100 | 23.0 | 5.5 | 4.0 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, NHDP 150-C, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-416.0 | IEC112 | 33.0 | 7.5 | 5.5 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, XLTI High Temperature, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
Flanges
Flanges
for electric motors
| CODE | MOTOR CONTRUCTION SHAPE | FOR PUMP SERIES |
|---|---|---|
| 1.099-528.0 | H90 B14 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-529.0 | H100/112 B14 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-530.0 | H100/112 B14 | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, NLTI, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical |
| 1.099-531.0 | H132 B14 | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, NMT - Car Wash Heavy Duty, NMT Chemical, XLTI Chemical, XLTI Stainless Steel Chemical, NMT Stainless Steel Chemical, PXI Heavy Duty |
| 1.099-532.0 | H160 B5 | XLTI, XLTI High Temperature, PXI 350, XXT, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty |
Flexible coupling
Flexible couplings for electic motors
Pump feet
Pump feet
| CODE | FOR PUMP SERIES |
|---|---|
| 1.099-687.0 | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, NHDP-HY, NMT - Car Wash Heavy Duty, NMT Chemical, NMT-HY, NPM-HY |
Ordinary Maintenance Tool Kit
Tool kit for ordinary maintenance
| CODE | FOR PUMP SERIES |
|---|---|
| 1.904-744.0 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA, NMT Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-667.0 | NMT, NPM, NPM-GR, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, NMT - Car Wash Heavy Duty, NMT Stainless Steel Chemical, Complete Electric Motopumps Units NMT |
| 1.099-665.0 | XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty, MPX Heavy Duty |
| 1.099-669.0 | MXT, MXT High Temperature, MPX 350, MPX 500, MXT Chemical, MXT Stainless Steel Chemical |
Extraordinary maintenance Kit
| CODE | FOR PUMP SERIES |
|---|---|
| 1.905-591.0 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.904-414.0 | NMT, NPM, NPM-GR, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, Complete Electric Motopumps Units NMT |
| 1.905-659.0 | XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, XXT High Temperature, XLTI Chemical, XLTI Stainless Steel Chemical, PXI Heavy Duty, MPX Heavy Duty |
| 1.904-418.0 | MXT, MXT High Temperature, MPX 350, MPX 500, MXT Chemical, MXT Stainless Steel Chemical |
