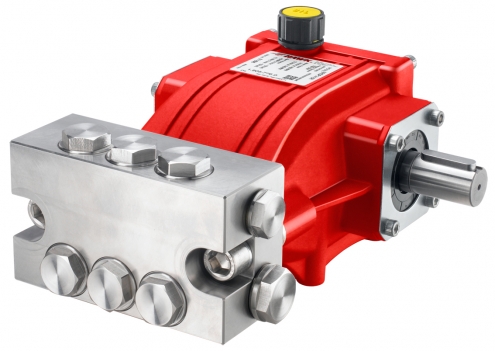

NHDP Stainless Steel Chemical Series
NHDP-ESA pumps can operate at a maximum pressure of 200 bar and with water temperatures up to 85°C (185°F). Pump Head and internal metal components, in contact with water, has been engineered in 316L stainless steel, as are the valves. Special seals are suitable for use with aggressive chemicals salt water. The painted body also provides greater protection against external aggressions. This pump is particularly so suited for fitting on system for food industry, but it can be used in the chemical sector with use of solvents*.
* See on the pump manual, the list of solvents admitted to use relative percentages.
TECHNICAL CHARACTERISTICS
| Weight | Kg | 10,5 |
| Oil capacity | lt. | 0.4 |
| Inlet | G | 1/2'' |
| Outlet | G | 3/8'' |
TECHNICAL CHARACTERISTICS
| Weight | Kg | 10,5 |
| Oil capacity | lt. | 0.4 |
| Inlet | G | 1/2'' |
| Outlet | G | 3/8'' |
The NHDP Stainless Steel Chemical Series is suitable for the following applications:
Find out about all the models in the series NHDP Stainless Steel Chemical.
|
Part. No.
CODE |
Part. No.
CODE |
FLOW RATE | MAX PRESSURE | RPM | MAX POWER | TEMPERATURE | POWER TAKE-OFF | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | HP | KW | |||||||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | BAR | PSI | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | °C | °F | |||
| NHDP8520ESAL | 1.905-086.0 | 8.5 | 10 | 2.2 | 2.7 | 200 | 2900 | 1450 | 1740 | 4.3 | 5.1 | 3.2 | 3.9 | 65 | 150 |
|
| NHDP8520ESAR | 1.905-085.0 | 8.5 | 10 | 2.2 | 2.7 | 200 | 2900 | 4.3 | 5.1 | 3.2 | 3.9 | 65 | 150 |
|
||
| NHDP1120ESAL | 1.905-088.0 | 11 | 13 | 2.9 | 3.5 | 200 | 2900 | 5.7 | 6.8 | 4.3 | 5.1 | 65 | 150 |
|
||
| NHDP1120ESAR | 1.905-087.0 | 11 | 13 | 2.9 | 3.5 | 200 | 2900 | 5.7 | 6.8 | 4.3 | 5.1 | 65 | 150 |
|
||
Discover the related ACCESSORIES
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Hollow shaft electric motor
Hollow shaft electric motors
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-399.0 | IEC100 | 20.0 | 4.0 | 3.0 | 1450 | 230/400V | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-398.0 | IEC100 | 22.0 | 5.5 | 4.0 | 1450 | 230/400V | NHDP Car Wash, NHDP 150, NHDP 200, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-448.0 | IEC112 | 32.0 | 7.5 | 5.5 | 1450 | 230-400V | NHDP Car Wash, NHDP 150, NHDP 200, NHDP Chemical, NHDP Stainless Steel Chemical |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
B3/B14 Electric motor version
B3/B14 Electric motor version
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-413.0 | IEC100 | 21.0 | 4.0 | 3.0 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, NHDP 120-C, NHDP 150-C, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-414.0 | IEC100 | 23.0 | 5.5 | 4.0 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, NHDP 150-C, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-416.0 | IEC112 | 33.0 | 7.5 | 5.5 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, XLTI High Temperature, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Flanges
Flanges
for electric motors
| CODE | MOTOR CONTRUCTION SHAPE | FOR PUMP SERIES |
|---|---|---|
| 1.099-528.0 | H90 B14 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-529.0 | H100/112 B14 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP Chemical, NHDP Stainless Steel Chemical |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Flexible coupling
Flexible couplings for electic motors
| CODE | MOTOR CONTRUCTION SHAPE | MOTOR P.T.O. Ø | PUMP P.T.O. Ø | FOR PUMP SERIES |
|---|---|---|---|---|
| 1.099-542.0 | H90 | 24 mm | 24 mm | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-543.0 | H100/112 | 28 mm | 24 mm | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP Chemical, NHDP Stainless Steel Chemical |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Pulsation dumpener
| CODE | FOR PUMP SERIES |
|---|---|
| 1.904-254.0 | NMT, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NLTI, NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NMT - Car Wash Heavy Duty, NHDP 200-NEMA, NMT Chemical, NHDP Chemical, NHDP Stainless Steel Chemical, Complete Electric Motopumps Units NMT |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Ordinary Maintenance Tool Kit
Tool kit for ordinary maintenance
| CODE | FOR PUMP SERIES |
|---|---|
| 1.904-744.0 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA, NMT Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.905-137.0 | NHDP Chemical, NHDP Stainless Steel Chemical |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Extraordinary maintenance Kit
| CODE | FOR PUMP SERIES |
|---|---|
| 1.905-591.0 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA, NHDP Chemical, NHDP Stainless Steel Chemical |
