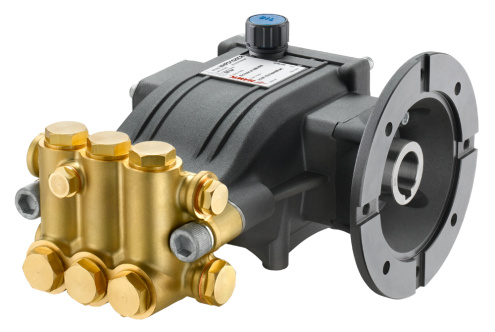

NHDP 200-C Series
NHDP 200-C pumps can operate at a maximum pressure of 200 bar and with water temperatures up to 65°C (150F). This is a more cost-effective alternative in our range of 200 bar pumps. It is a particularly good choice for fitting on compact professional high-pressure washers as well as washing systems for motor vehicles on account of the excellent duration of its seals The flange on this pump makes it suitable for fitting on all IEC standard electric motors on the market.
TECHNICAL CHARACTERISTICS
| Weight | Kg | 8,6 |
| Oil capacity | lt. | 0,4 |
| Inlet | G | 1/2” |
| Outlet | G | 3/8” |
TECHNICAL CHARACTERISTICS
| Weight | Kg | 8,6 |
| Oil capacity | lt. | 0,4 |
| Inlet | G | 1/2” |
| Outlet | G | 3/8” |
Find out about all the models in the series NHDP 200-C.
|
Part. No.
CODE |
Part. No.
CODE |
FLOW RATE | MAX PRESSURE | RPM | MAX POWER | TEMPERATURE | POWER TAKE-OFF | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | HP | KW | |||||||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | BAR | PSI | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | °C | °F | |||
| NHDP8520CL | 1.904-592.0 | 8.5 | 10 | 2.2 | 2.7 | 200 | 2900 | 1450 | 1740 | 3.2 | 3.8 | 2.4 | 2.9 | 65 | 150 |
|
| NHDP8520CR | 1.904-591.0 | 8.5 | 10 | 2.2 | 2.7 | 200 | 2900 | 3.2 | 3.8 | 2.4 | 2.9 | 65 | 150 |
|
||
| NHDP1020CL | 1.904-590.0 | 10 | 12 | 2.6 | 3.2 | 200 | 2900 | 4.9 | 6.3 | 3.7 | 4.7 | 65 | 150 |
|
||
| NHDP1020CR | 1.904-589.0 | 10 | 12 | 2.6 | 3.2 | 200 | 2900 | 4.9 | 6.3 | 3.7 | 4.7 | 65 | 150 |
|
||
| NHDP1120CL | 1.904-588.0 | 11 | 13 | 2.9 | 3.5 | 200 | 2900 | 5.7 | 6.8 | 4.3 | 5.1 | 65 | 150 |
|
||
| NHDP1120CR | 1.904-587.0 | 11 | 13 | 2.9 | 3.5 | 200 | 2900 | 5.7 | 6.8 | 4.3 | 5.1 | 65 | 150 |
|
||
| NHDP1220CL | 1.904-586.0 | 12 | 14 | 3.1 | 3.7 | 200 | 2900 | 6.1 | 7.2 | 4.5 | 5.3 | 65 | 150 |
|
||
| NHDP1220CR | 1.904-585.0 | 12 | 14 | 3.1 | 3.7 | 200 | 2900 | 6.1 | 7.2 | 4.5 | 5.3 | 65 | 150 |
|
||
| NHDP1320CL | 1.904-584.0 | 13 | 15.5 | 3.4 | 4 | 200 | 2900 | 6.7 | 7.7 | 4.9 | 5.7 | 65 | 150 |
|
||
| NHDP1320CR | 1.904-583.0 | 13 | 15.5 | 3.4 | 4 | 200 | 2900 | 7.7 | 7.7 | 4.9 | 5.7 | 65 | 150 |
|
||
| NHDP1420CL | 1.904-582.0 | 14 | 17 | 3.7 | 4.5 | 200 | 2900 | 7.2 | 8.5 | 5.3 | 6.3 | 65 | 150 |
|
||
| NHDP1420CR | 1.904-581.0 | 14 | 17 | 3.7 | 4.5 | 200 | 2900 | 7.2 | 8.5 | 5.3 | 6.3 | 65 | 150 |
|
||
| NHDP1520CL | 1.904-580.0 | 15 | 18 | 4 | 4.7 | 200 | 2900 | 7.7 | 8.5 | 5.3 | 6.3 | 65 | 150 |
|
||
| NHDP1520CR | 1.904-579.0 | 15 | 18 | 4 | 4.7 | 200 | 2900 | 7.7 | 8.5 | 5.3 | 6.3 | 65 | 150 |
|
||
Discover the related ACCESSORIES
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
B3/B14 Electric motor version
B3/B14 Electric motor version
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-413.0 | IEC100 | 21.0 | 4.0 | 3.0 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, NHDP 120-C, NHDP 150-C, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-414.0 | IEC100 | 23.0 | 5.5 | 4.0 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, NHDP 150-C, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-416.0 | IEC112 | 33.0 | 7.5 | 5.5 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, XLTI High Temperature, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
VBT
Head-mounted unloader valve with by-pass
Max 25 lpm & 275 bar
| CODE | FLOW RATE | MAX PRESSURE | INLET | OUTLET | FOR PUMP SERIES | ||
|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | BAR | PSI | ||||
| 1.099-485.0 | 25 | 6.6 | 210 | 3045 | G 1/2 F | G 3/8 M | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Jetter valves
Jetter valves
| CODE | FOR PUMP SERIES |
|---|---|
| 1.904-265.0 | NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Pulsation dumpener
| CODE | FOR PUMP SERIES |
|---|---|
| 1.904-254.0 | NMT, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NLTI, NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NMT - Car Wash Heavy Duty, NHDP 200-NEMA, NMT Chemical, NHDP Chemical, NHDP Stainless Steel Chemical, Complete Electric Motopumps Units NMT |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Ordinary Maintenance Tool Kit
Tool kit for ordinary maintenance
| CODE | FOR PUMP SERIES |
|---|---|
| 1.904-744.0 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA, NMT Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Extraordinary maintenance Kit
| CODE | FOR PUMP SERIES |
|---|---|
| 1.905-591.0 | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA, NHDP Chemical, NHDP Stainless Steel Chemical |
