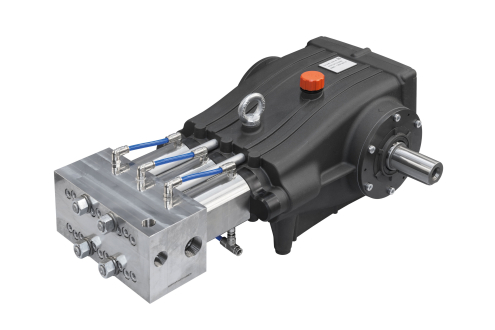

GXX Series
GXX pumps can operate at a maximum pressure of 1000 bar and with water temperatures up to 65°C (149 F). This pump is suitable for various cleaning tasks, e.g in the Chemical and Oil & Gas industry, as well as in the field of ship cleaning.The sealing water system of the pump prevents leakage, allowing a particularly high durability of the high-pressure seals and counteracts the intrusion of air. In addition to that the hard metal plungers used offer increased wear resistance, high thermal shock resistance and high cavitation insensitivity.
TECHNICAL CHARACTERISTICS
| Weight | Kg | 78 |
| Oil capacity | lt. | 5.5 |
| Inlet | G | 1'' |
| Outlet | G | 24x1.5 |
TECHNICAL CHARACTERISTICS
| Weight | Kg | 78 |
| Oil capacity | lt. | 5.5 |
| Inlet | G | 1'' |
| Outlet | G | 24x1.5 |
Find out about all the models in the series GXX.
|
Part. No.
CODE |
Part. No.
CODE |
FLOW RATE | MAX PRESSURE | RPM | MAX POWER | TEMPERATURE | POWER TAKE-OFF | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | BAR | PSI | HP | KW | °C | °F | ||||
| GXX1710SL | 1.905-114.0 | 16.7 | 4.4 | 1000 | 14500 | 1000 | 43.1 | 31.7 | 65 | 149 |
|
| GXX1710SR | 1.905-113.0 | 16.7 | 4.4 | 1000 | 14500 | 43.1 | 31.7 | 65 | 149 |
|
|
| GXX2410L | 1.905-116.0 | 23.8 | 6.3 | 1000 | 14500 | 1450 | 61.1 | 44.9 | 65 | 149 |
|
| GXX2410R | 1.905-115.0 | 23.8 | 6.3 | 1000 | 14500 | 61.1 | 44.9 | 65 | 149 |
|
|
Discover the related ACCESSORIES
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Flexible coupling
Flexible couplings for electic motors
| CODE | MOTOR CONTRUCTION SHAPE | MOTOR P.T.O. Ø | PUMP P.T.O. Ø | FOR PUMP SERIES |
|---|---|---|---|---|
| 1.904-313.0 | IEC225 | 60 mm | 40 mm | HFR, HHP 500 - 1000 rpm, HHP 500 - 1450 rpm, GXT, GXT High temperature, GPX, GXX, TXT, TPX, TXX |
| 1.904-757.0 | IEC250 | 65 mm | 40 mm | HFR, HHP 500 - 1000 rpm, GXT, GXT High temperature, GPX, GXX, TXT, TPX, TXX |
| 1.904-758.0 | IEC280 | 75 mm | 40 mm | GXT, GXT High temperature, GPX, GXX, TXT, TPX, TXX |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Accessories GXX-TXX
| CODE | NOTES | FOR PUMP SERIES |
|---|---|---|
| 1.905-239.0 | Pressure gauge connection G1/2 - 2000 bar / Kit raccordo manometro G1/2 - 2000 bar | GXX, TXX |
| 1.905-237.0 | Plug kit G 1/2 / Kit tappo G 1/2 | GXX, TXX |
| 1.905-236.0 | Double nipple M24x1,5-M24x1,5 / Raccordo doppio M24x1,5-M24x1,5 | GXX, TXX |
| 1.905-238.0 | Screw plug kit M24x1,5 DZ / Kit tappo M24x1,5 DZ | GXX, TXX |
